Lamp replacement
STEP 1
STEP 1
STEP 1

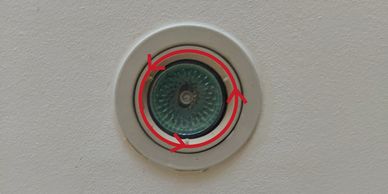

Turn the inner ring anticlockwise.
STEP 2
STEP 1
STEP 1

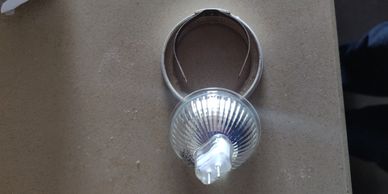

Pull out the inner ring together with the bulb outward
STEP 3
STEP 1
STEP 3
Hold the lamp holder and unplug the bulb
STEP 4
STEP 4
STEP 3
Lift up and slide out the old bulb.
Insert a new bulb.
You need GU5.3 (or MR16) halogen lamp.
Do not use LED lamps instead of halogen as different power source is needed.
STEP 5
STEP 4
STEP 5
Plug a new bulb into the lamp holder
STEP 5
STEP 4
STEP 5
Insert the inner ring into the mount on the ceiling. Remember to insert the two lugs of the ring into the holes of the ceiling mount.
Turn clockwise.
